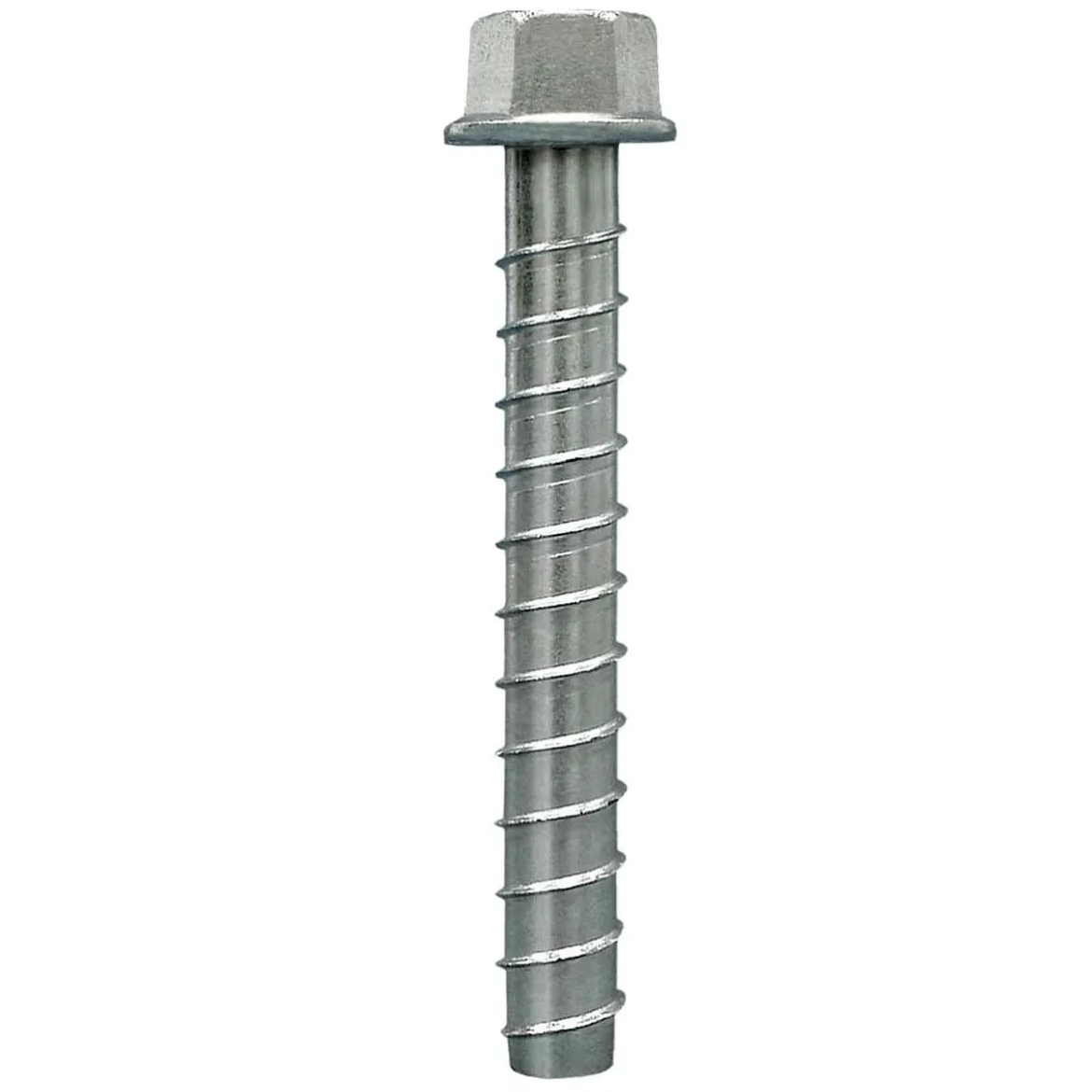

10PK Titen HD® Screw Anchor 5/8 x 4in

Price:

Brand: Simpson Strong Tie

SKU: THDB62400H

UPC Code: 707392521020

Overview
Dimensions
Specifications
Contact Us

A high-strength screw anchor for use in cracked and uncracked concrete; as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates; ledgers; post bases; seating; and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork; or when a fixture needs to be relocated.

Tested in accordance with ACI 355.2; AC193 and AC106.
Qualified for static; wind and seismic loading conditions.
Thread design undercuts to efficiently transfer the load to the base material.
Standard fractional sizes.
Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility.
No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits.
Hex-washer head requires no separate washer; unless required by code; and provides a clean installed appearance.
Removable — ideal for temporary anchoring (e.g.; formwork; bracing) or applications where fixtures may need to be moved.
Use in dry interior environments only.

Products specifications

Attribute name	Attribute value
PRODUCT
Width (cm)	8.890000
Depth (cm)	13.970000
Height (cm)	8.890000
Weight (kg)	2.360000
INNER CASE
Width (cm)	0.000000
Depth (cm)	0.000000
Height (cm)	0.000000
Weight (kg)	0.000000
MASTER CASE
Quantity	4
Barcode	20707392521000
Width (cm)	20.320000
Depth (cm)	38.100000
Height (cm)	10.160000
Weight (kg)	9.500000
PALLET
Quantity	0.000000
Pallet Volume	0.000000
Width (cm)	0.000000
Depth (cm)	0.000000
Height (cm)	0.000000
Weight (kg)	0.000000

Product Dimention
